Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks

A step-by-step troubleshooting guide that checks power, wiring, settings, and the affected component before parts are replaced.

DifficultyIntermediateTime40–100 minSteps6
FAULT OVERVIEW

Understand the symptom before replacing parts

A step-by-step troubleshooting guide that checks power, wiring, settings, and the affected component before parts are replaced.

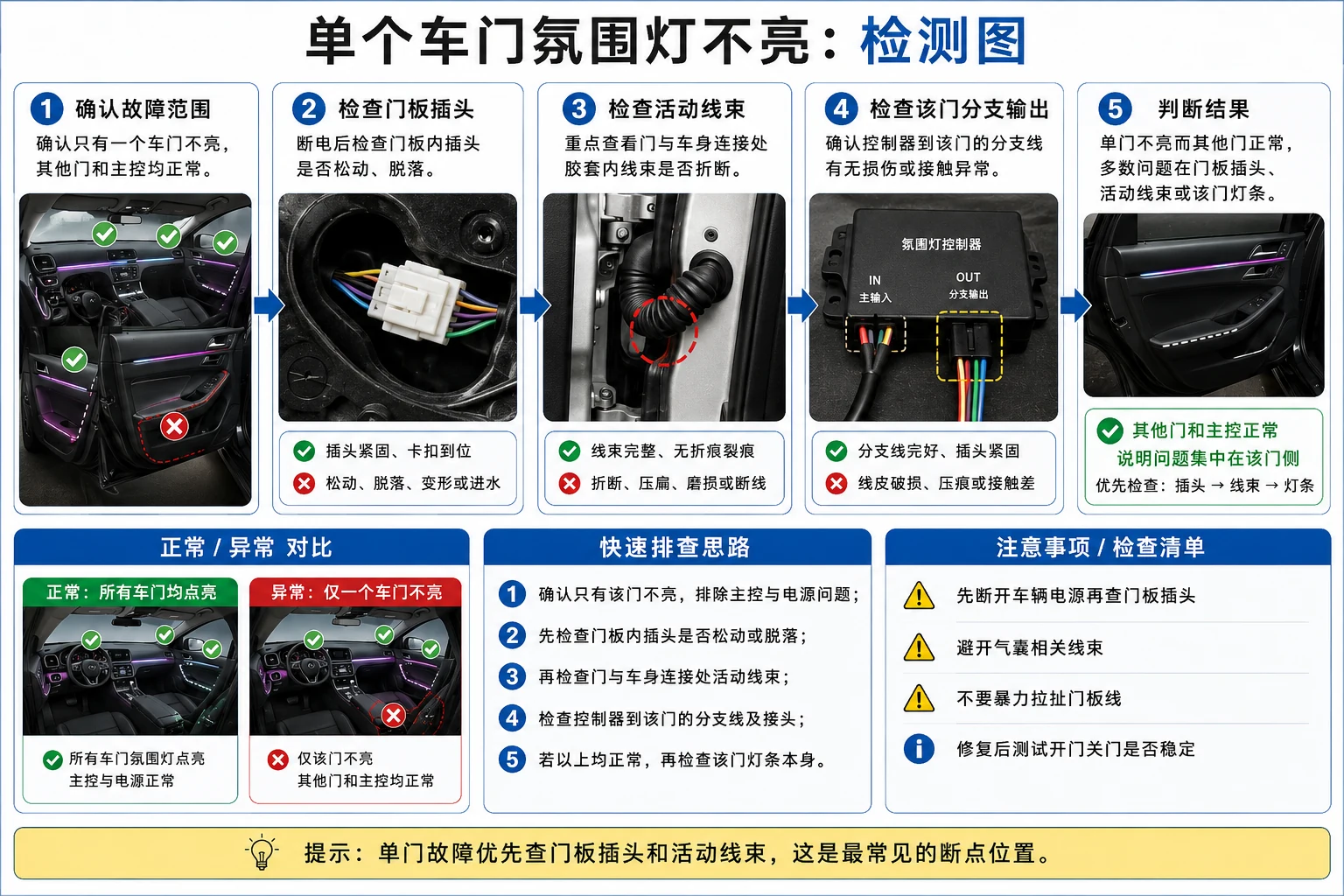

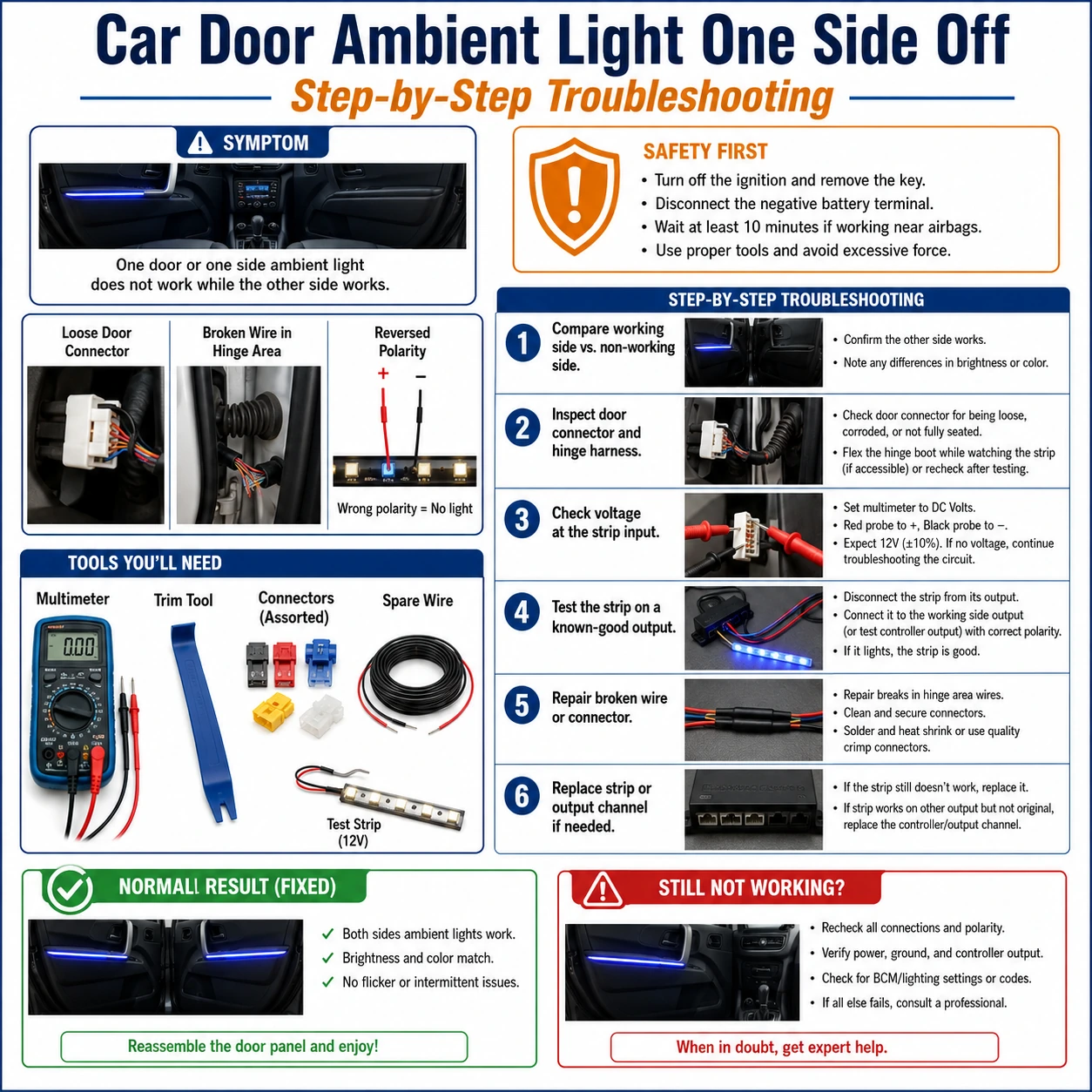

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — complete English tutorial infographic
English tutorial overview Complete English infographic with the six diagnostic or repair steps shown below.
TOOLS

Prepare before testing

  • Suitable inspection tool
  • Digital multimeter
  • Suitable inspection tool
  • Suitable inspection tool
!Safety note

Use the product label and wiring diagram as the final authority.

COMMON CAUSES

Check these areas first

  • Power or voltage mismatch
  • Loose, reversed, or damaged connection
  • Controller, driver, or component failure
  • Incorrect setting or incompatible device
STEP BY STEP

Diagnostic procedure

Follow the sequence and change only one condition at a time.

01

Disconnect power and inspect the installation

Check the fuse tap, ACC source, ground point, controller, and branch connectors for looseness or damage.

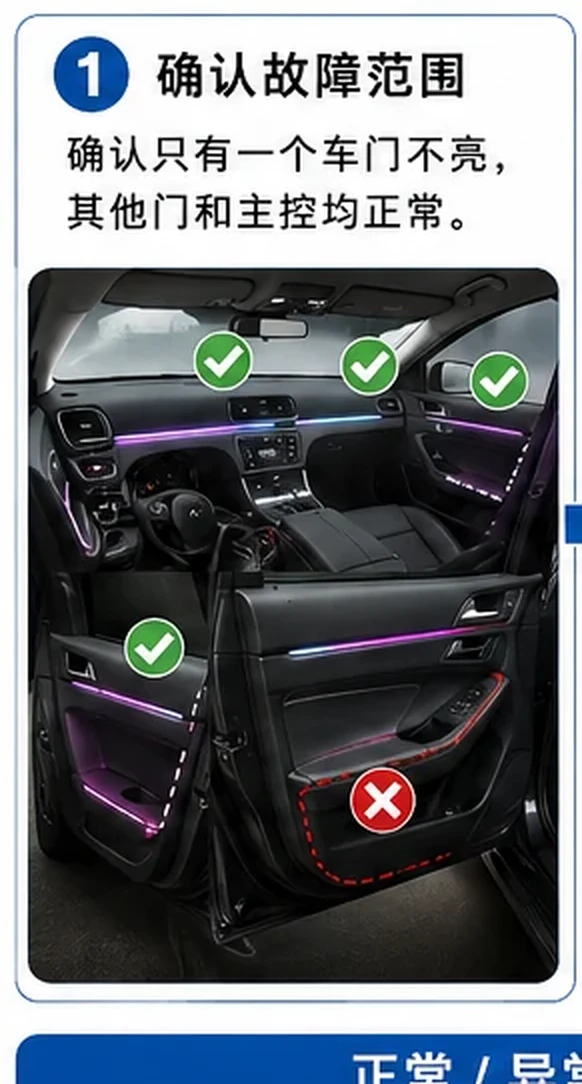

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 1: Disconnect power and inspect the installation
Step 01: Disconnect power and inspect the installation — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
02

Measure supply voltage in each vehicle state

Compare voltage with ignition off, ACC on, cranking, and engine running.

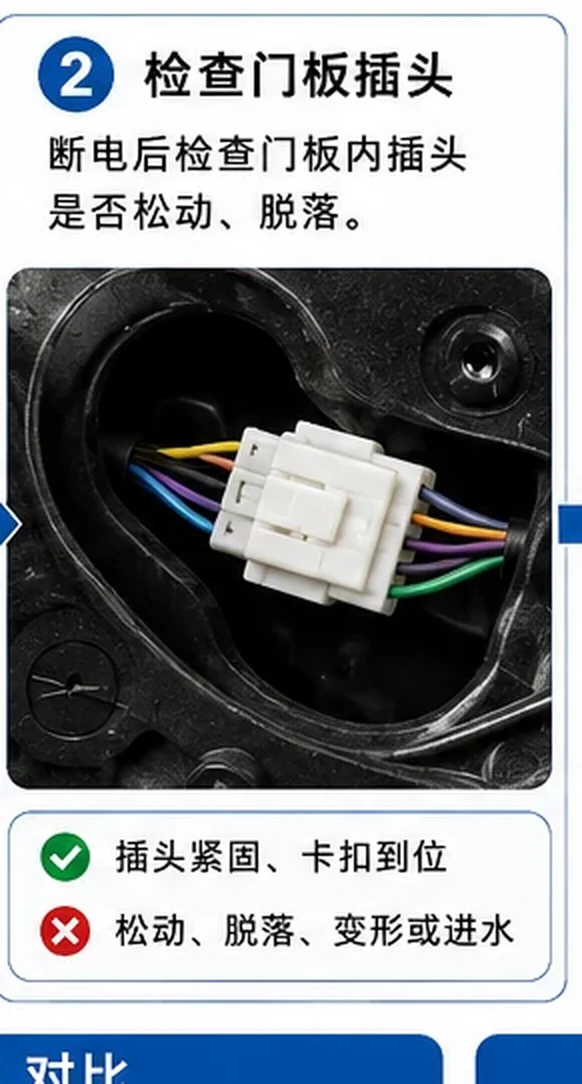

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 2: Measure supply voltage in each vehicle state
Step 02: Measure supply voltage in each vehicle state — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
03

Compare a working branch with the faulty branch

Swap only one branch or controller output at a time to isolate the problem.

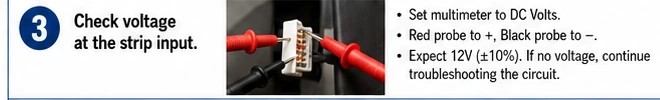

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 3: Compare a working branch with the faulty branch
Step 03: Compare a working branch with the faulty branch — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.

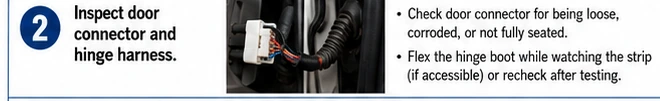

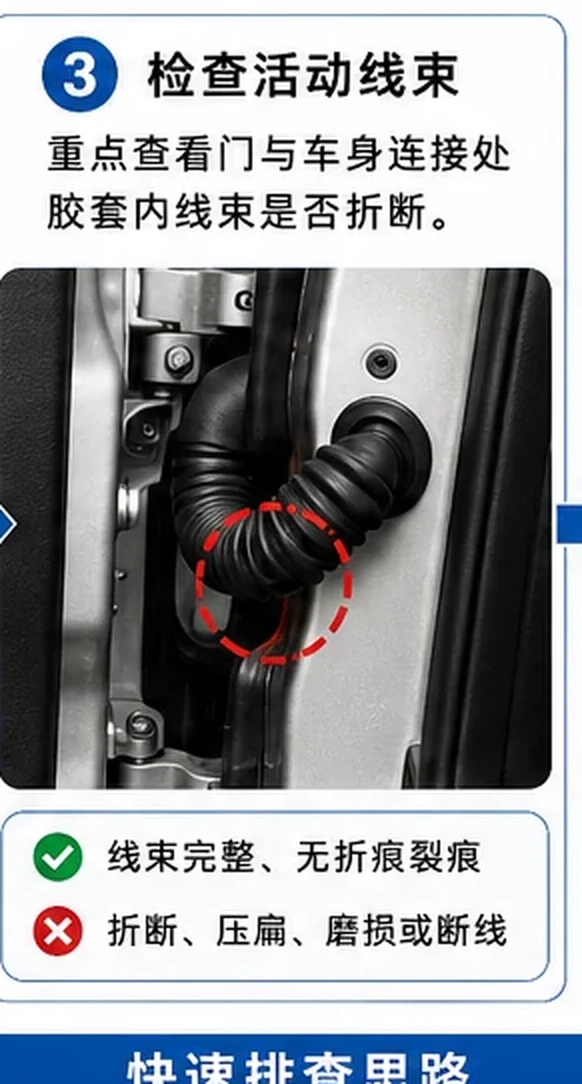

04

Inspect door-jamb and moving wiring

Look for pinched, stretched, or broken conductors near hinges and rubber boots.

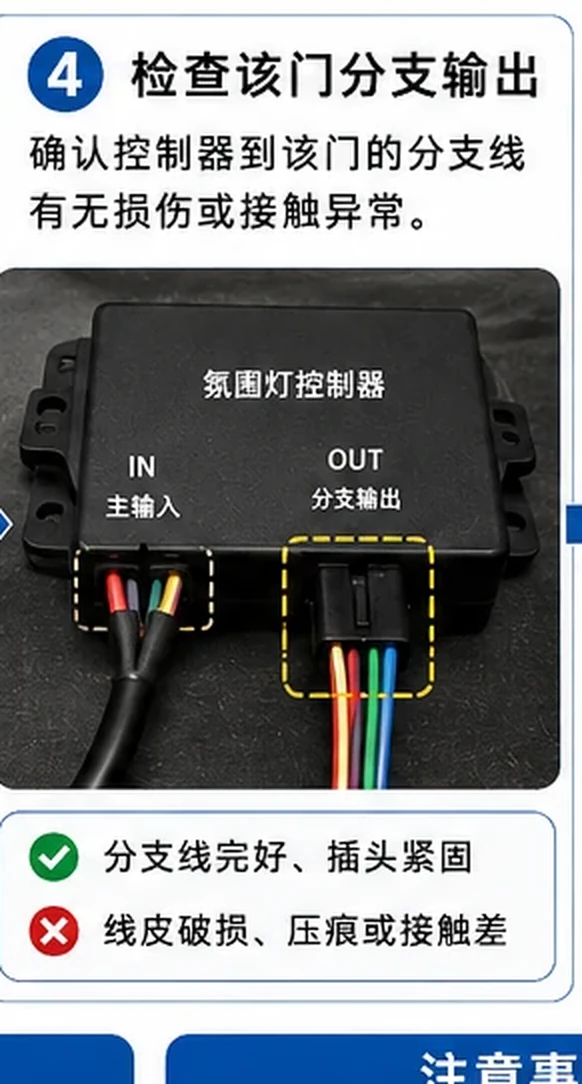

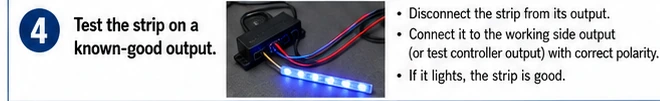

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 4: Inspect door-jamb and moving wiring
Step 04: Inspect door-jamb and moving wiring — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
05

Check color order, polarity, and connector orientation

Use solid red, green, and blue tests and verify all connectors are inserted in the same direction.

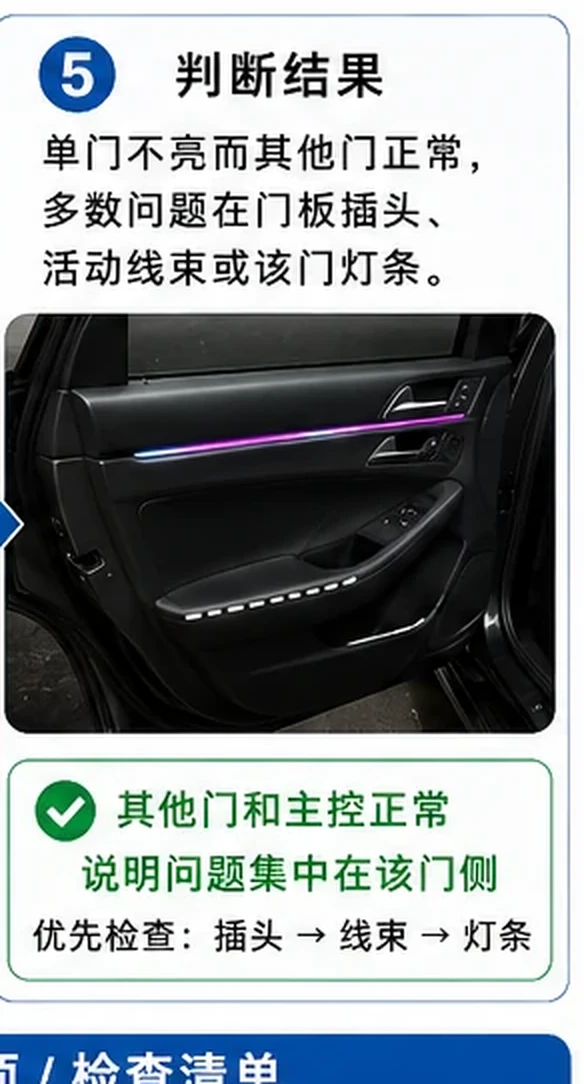

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 5: Check color order, polarity, and connector orientation
Step 05: Check color order, polarity, and connector orientation — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
06

Repair, protect, and retest

Restore insulation, secure the wiring away from airbags and moving parts, then repeat the test.

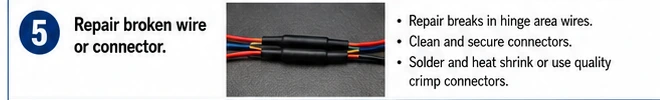

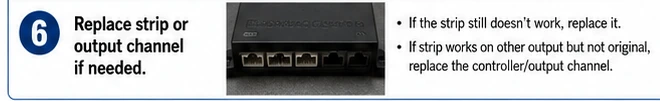

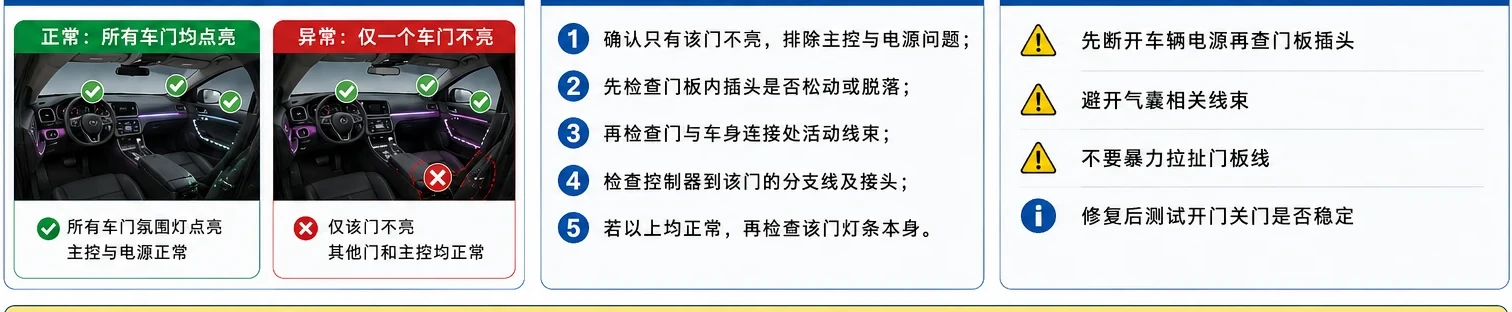

Only One Car Door Ambient Light Is Off: Branch Wiring and Door Harness Checks — step 6: Repair, protect, and retest
Step 06: Repair, protect, and retest — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
Expected result

The fault is isolated to a power source, connection, setting, controller, driver, or light section.

If the fault remains

Stop if there is overheating, odor, damaged insulation, repeated fuse failure, or exposed mains voltage.
