Grow Lights · Partial outage

Some Grow-Light LEDs Are Off

A step-by-step troubleshooting guide that checks power, wiring, settings, and the affected component before parts are replaced.

DifficultyAdvancedTime30–90 minSteps6
FAULT OVERVIEW

Understand the symptom before replacing parts

A step-by-step troubleshooting guide that checks power, wiring, settings, and the affected component before parts are replaced.

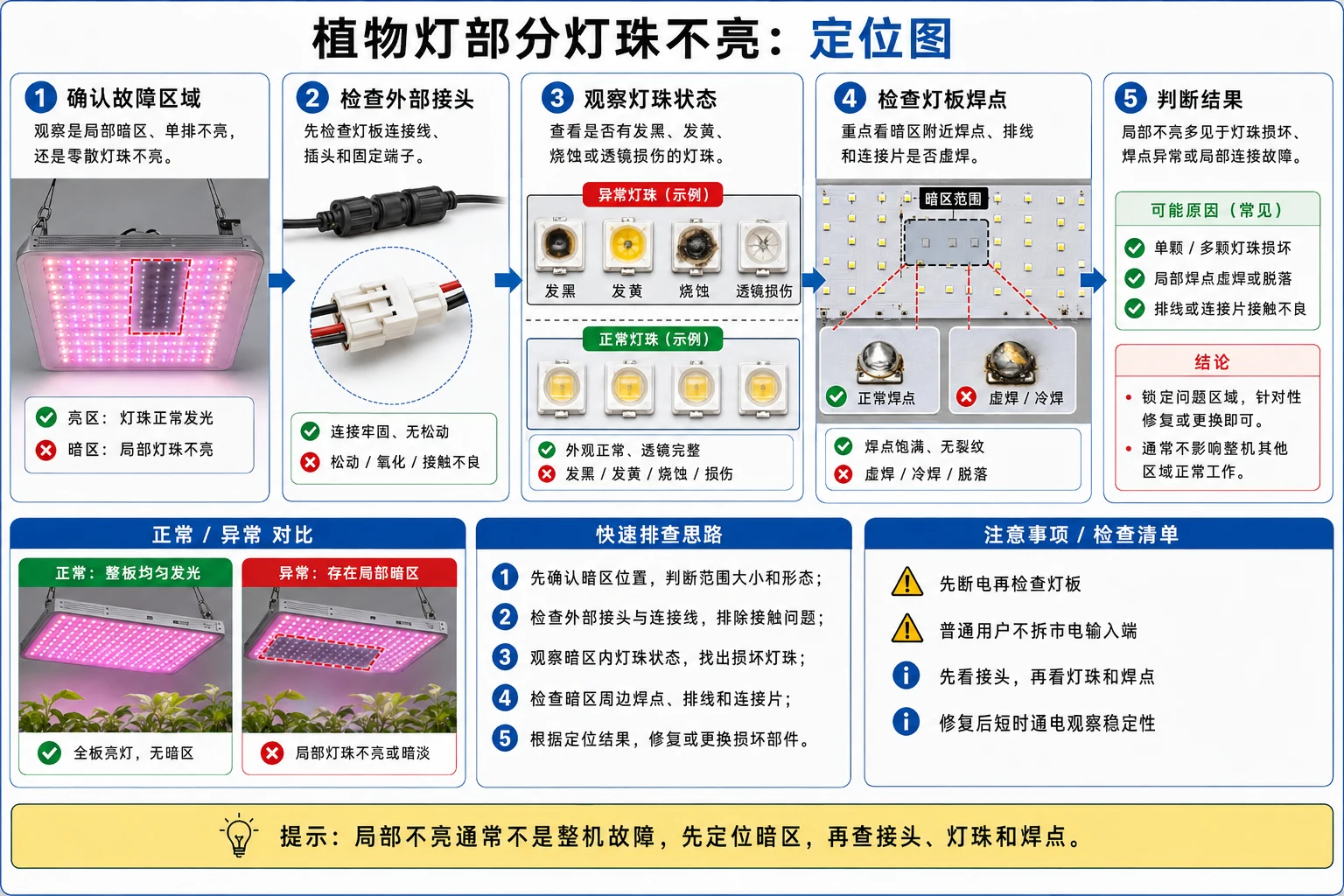

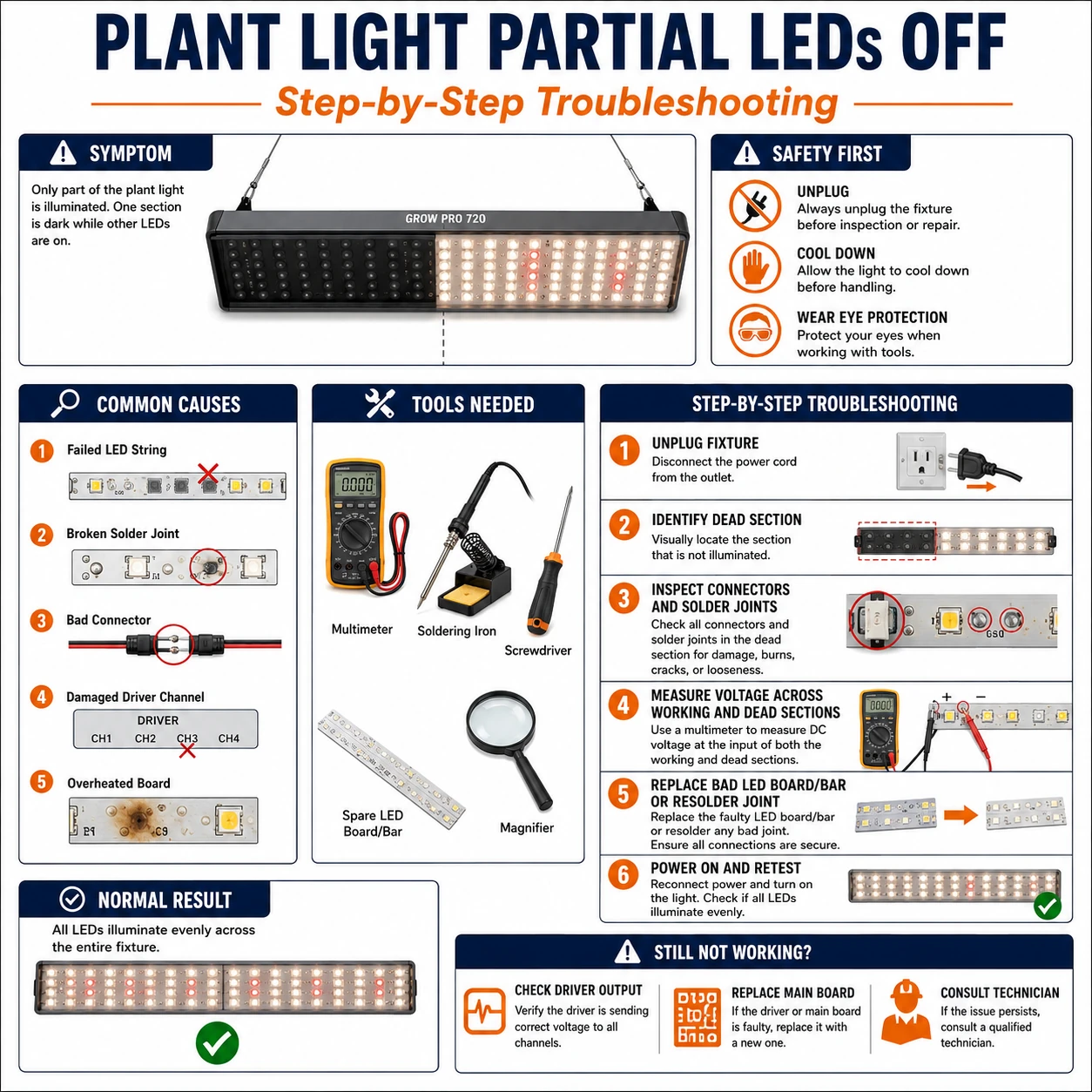

Some Grow-Light LEDs Are Off — complete English tutorial infographic
English tutorial overview Complete English infographic with the six diagnostic or repair steps shown below.
TOOLS

Prepare before testing

  • Suitable inspection tool
  • Digital multimeter
  • Suitable inspection tool
  • Suitable inspection tools
!Safety note

Use the product label and wiring diagram as the final authority.

COMMON CAUSES

Check these areas first

  • Power or voltage mismatch
  • Loose, reversed, or damaged connection
  • Controller, driver, or component failure
  • Incorrect setting or incompatible device
STEP BY STEP

Diagnostic procedure

Follow the sequence and change only one condition at a time.

01

Verify outlet, timer, and external controls

Bypass the timer or smart plug temporarily and confirm stable input power.

Some Grow-Light LEDs Are Off — step 1: Verify outlet, timer, and external controls
Step 01: Verify outlet, timer, and external controls — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
02

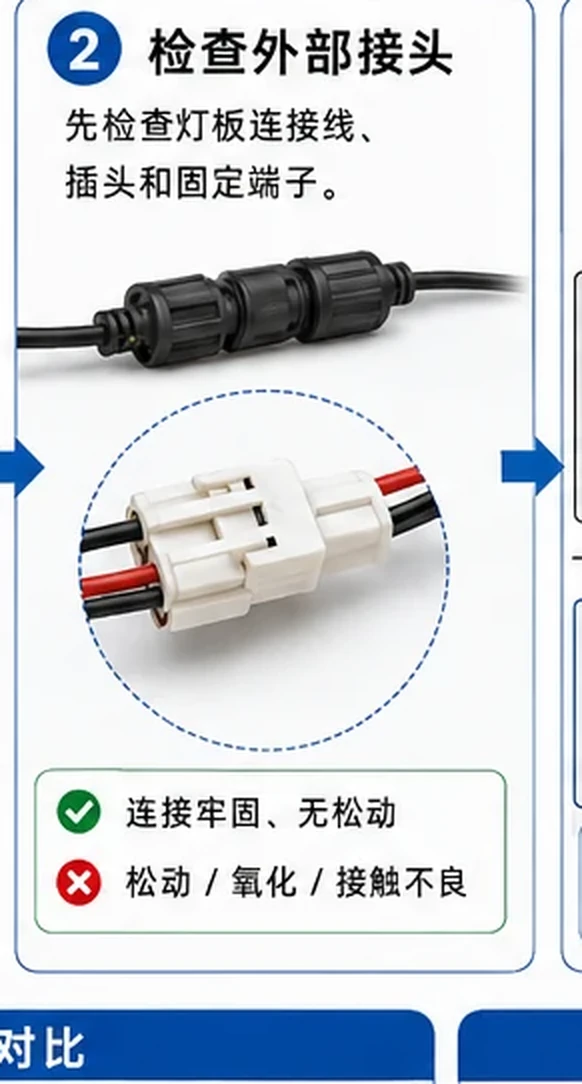

Inspect the driver, connectors, fan, and LED board

Look for loose plugs, dust blockage, discoloration, damaged LEDs, or signs of overheating.

Some Grow-Light LEDs Are Off — step 2: Inspect the driver, connectors, fan, and LED board
Step 02: Inspect the driver, connectors, fan, and LED board — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
03

Record cold-start and warm-up behavior

Note brightness, power, fan operation, temperature, and the time until the fault appears.

Some Grow-Light LEDs Are Off — step 3: Record cold-start and warm-up behavior
Step 03: Record cold-start and warm-up behavior — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
04

Improve airflow and reduce load for comparison

Clean vents, increase clearance, lower dimming level, and observe whether the fault changes.

Some Grow-Light LEDs Are Off — step 4: Improve airflow and reduce load for comparison
Step 04: Improve airflow and reduce load for comparison — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
05

Test with a known-good compatible component

Substitute a compatible driver, fan, timer, or power source without opening mains sections.

Some Grow-Light LEDs Are Off — step 5: Test with a known-good compatible component
Step 05: Test with a known-good compatible component — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
06

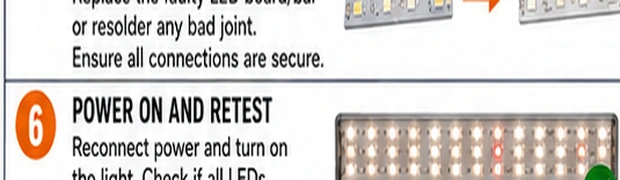

Confirm stable operation over time

Run the light through a complete warm-up period and verify consistent brightness and temperature.

Some Grow-Light LEDs Are Off — step 6: Confirm stable operation over time
Step 06: Confirm stable operation over time — Cropped directly from this tutorial’s English main infographic.
What to observeRecord the reading or behavior before changing the next variable.
Expected result

The fault is isolated to a power source, connection, setting, controller, driver, or light section.

If the fault remains

Stop if there is overheating, odor, damaged insulation, repeated fuse failure, or exposed mains voltage.
